As a supplier of JS110 ECU CDI, I am often asked about how this device controls multi - spark ignition. In this blog post, I will delve into the technical details of how the JS110 ECU CDI manages multi - spark ignition, if applicable.
Understanding the Basics of ECU CDI
Before we discuss multi - spark ignition, it's essential to understand what an ECU CDI is. An Engine Control Unit (ECU) is a critical component in modern motorcycles that manages various engine functions. The Capacitor Discharge Ignition (CDI) is a type of ignition system that stores electrical energy in a capacitor and then discharges it rapidly to create a high - voltage spark in the spark plug.
The JS110 ECU CDI combines these two functions. It is designed to optimize the ignition process for the JS110 motorcycle engine, ensuring efficient combustion and better performance.
The Concept of Multi - Spark Ignition
Multi - spark ignition is a technology that provides multiple sparks within a single combustion cycle. Instead of a single, high - energy spark, the system generates a series of smaller sparks over a short period. This approach has several advantages. Firstly, it can improve the combustion efficiency, especially in lean air - fuel mixtures. Secondly, it can enhance the engine's power output and reduce emissions.
How the JS110 ECU CDI Controls Multi - Spark Ignition
The JS110 ECU CDI uses a combination of hardware and software to control multi - spark ignition.
Hardware Aspects
- Capacitor Design: The CDI unit in the JS110 ECU has a carefully designed capacitor. The capacitor is responsible for storing electrical energy. In a multi - spark ignition system, the capacitor needs to be able to charge and discharge quickly multiple times within a short period. The JS110 ECU CDI's capacitor is engineered to have a high charge - discharge rate, allowing it to generate multiple sparks.
- Transformer and Coil: The transformer and coil in the CDI unit are crucial for stepping up the voltage. When the capacitor discharges, the transformer and coil convert the low - voltage stored energy into a high - voltage pulse that can create a spark at the spark plug. For multi - spark ignition, these components need to be able to handle rapid voltage changes. The JS110 ECU CDI's transformer and coil are designed to be highly responsive, enabling them to generate multiple high - voltage pulses for each combustion cycle.
Software Aspects
- Timing Control: The ECU in the JS110 ECU CDI uses sophisticated algorithms to control the timing of the multi - spark ignition. It takes into account various engine parameters such as engine speed, load, and temperature. Based on these inputs, the ECU determines the optimal timing for each spark. For example, at low engine speeds, the ECU may generate fewer sparks, while at high speeds, it may increase the number of sparks to ensure complete combustion.
- Spark Quantity and Intensity: The software also controls the number of sparks and their intensity. By adjusting these parameters, the JS110 ECU CDI can adapt to different operating conditions. For instance, in a cold start situation, the system may increase the intensity and number of sparks to help the engine start more easily.
Advantages of the JS110 ECU CDI's Multi - Spark Ignition
- Improved Fuel Efficiency: The multi - spark ignition system in the JS110 ECU CDI helps to burn the air - fuel mixture more completely. This means that more of the fuel's energy is converted into mechanical work, resulting in better fuel efficiency. Riders can enjoy longer rides with less fuel consumption.
- Enhanced Power Output: With more efficient combustion, the engine can produce more power. The multiple sparks ensure that the air - fuel mixture ignites more effectively, leading to a stronger explosion in the combustion chamber and increased torque and horsepower.
- Reduced Emissions: A more complete combustion process also means fewer unburned hydrocarbons and other pollutants are released into the atmosphere. The JS110 ECU CDI's multi - spark ignition system helps the motorcycle meet stricter emission standards.
Comparison with Other Ignition Systems
When compared to traditional single - spark ignition systems, the multi - spark ignition controlled by the JS110 ECU CDI offers significant advantages. Traditional systems may struggle to ignite lean air - fuel mixtures or in difficult operating conditions. In contrast, the JS110 ECU CDI's multi - spark ignition can adapt to a wider range of conditions, providing more reliable ignition and better overall performance.

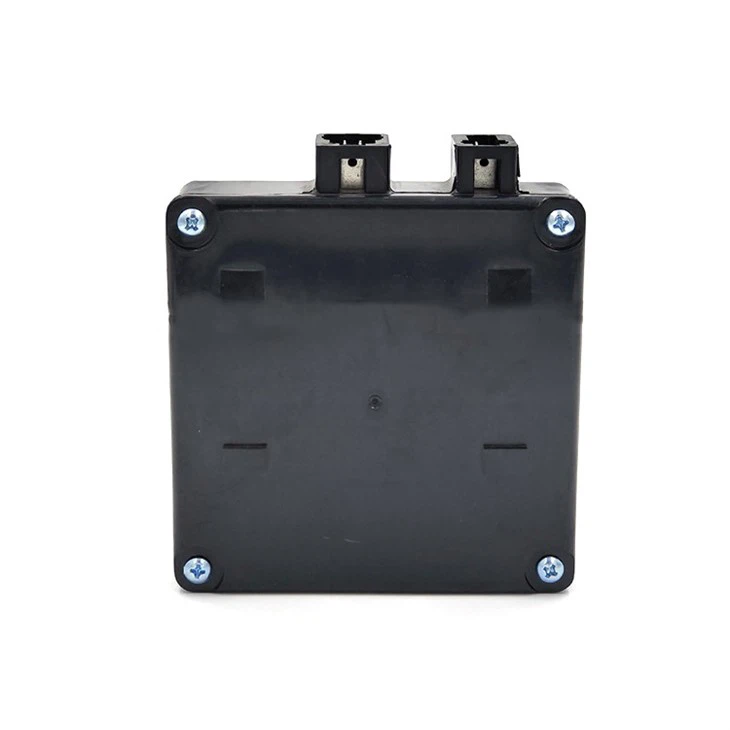

For example, consider the Electronic Ignition for SUZUKI GS125. While it is a good ignition system for the SUZUKI GS125, it may not have the multi - spark ignition feature that the JS110 ECU CDI offers. The 8 Cables Fortune 125 ECU CDI also has its own characteristics, but the JS110 ECU CDI stands out with its advanced multi - spark ignition technology.
Applications in the Motorcycle Industry
The JS110 ECU CDI's multi - spark ignition technology has a wide range of applications in the motorcycle industry. It is particularly suitable for motorcycles that require high - performance and efficient ignition systems. Whether it's for commuter motorcycles like the JS110 or high - performance sports bikes, the multi - spark ignition controlled by the JS110 ECU CDI can improve the overall riding experience.
Why Choose Our JS110 ECU CDI
As a supplier of the JS110 ECU CDI, we take pride in the quality and performance of our products. Our JS110 ECU CDI is rigorously tested to ensure that it meets the highest standards. We use the latest technology and high - quality components to manufacture our CDI units, providing reliable and efficient multi - spark ignition.
If you are in the motorcycle industry and are looking for a high - performance ignition system, our JS110 ECU CDI is an excellent choice. Whether you are a motorcycle manufacturer, a repair shop, or an individual rider, we can provide you with the best - in - class JS110 ECU CDI. Contact us to discuss your specific requirements and start a procurement negotiation. We are committed to providing you with the best products and services.
