When it comes to motorcycle maintenance and upgrades, the ignition system plays a crucial role in ensuring optimal performance. As a trusted supplier of the YMH 8 Pin CDI Box, I understand the importance of having the right tools for a successful installation. In this blog post, I'll delve into the essential tools needed to install the YMH 8 Pin CDI Box and provide some insights into the installation process.
Understanding the YMH 8 Pin CDI Box
Before we discuss the installation tools, let's briefly understand what the YMH 8 Pin CDI Box is and why it's important. The YMH 8 Pin CDI Box, also known as a Capacitor Discharge Ignition Box, is a vital component of the motorcycle's ignition system. It controls the timing and intensity of the spark that ignites the fuel-air mixture in the engine cylinders. A properly functioning CDI box ensures smooth engine operation, increased power output, and better fuel efficiency.
Essential Tools for Installation
1. Socket Wrench Set
A socket wrench set is an indispensable tool for any motorcycle maintenance task. When installing the YMH 8 Pin CDI Box, you'll need to remove and secure various bolts and nuts. Different-sized sockets are required to fit the specific fasteners on your motorcycle. Make sure to have a set that includes both metric and standard sizes to cover all possible requirements.
2. Screwdriver Set
A good quality screwdriver set with both flathead and Phillips head screwdrivers is essential. You'll use it to remove and install screws that hold the CDI box in place, as well as any covers or panels that need to be accessed during the installation process.
3. Wire Strippers and Crimpers
The YMH 8 Pin CDI Box is connected to the motorcycle's electrical system through a series of wires. Wire strippers are used to remove the insulation from the wires, allowing you to make proper connections. Crimpers, on the other hand, are used to attach terminals to the wires. These tools ensure a secure and reliable electrical connection, preventing any issues with the ignition system.
4. Multimeter
A multimeter is a valuable tool for troubleshooting and verifying electrical connections. Before installing the YMH 8 Pin CDI Box, you can use the multimeter to check the voltage, continuity, and resistance of the wires and components in the ignition system. This helps you identify any potential problems and ensures that the new CDI box is functioning correctly after installation.
5. Pliers
Pliers are useful for gripping, bending, and cutting wires. You may need to use them to manipulate the wires during the installation process, especially when making tight connections or routing the wires neatly.
6. Electrical Tape
Electrical tape is used to insulate electrical connections and prevent short circuits. After making the connections between the YMH 8 Pin CDI Box and the motorcycle's electrical system, wrap the connections with electrical tape to protect them from moisture, dirt, and vibration.
Installation Process Overview
Now that you have the necessary tools, here's a general overview of the installation process for the YMH 8 Pin CDI Box:
- Prepare the Motorcycle: Ensure the motorcycle is turned off and the battery is disconnected to prevent any electrical shocks.
- Locate the Existing CDI Box: Find the old CDI box on your motorcycle. It is usually located near the engine or under the seat.
- Remove the Old CDI Box: Use the appropriate tools to remove the bolts, screws, and wires connected to the old CDI box. Take note of the wire connections to ensure proper installation of the new CDI box.
- Install the New YMH 8 Pin CDI Box: Carefully connect the wires from the new CDI box to the corresponding wires on the motorcycle. Make sure the connections are secure and use the crimpers and electrical tape as needed.
- Secure the CDI Box: Use the bolts or screws to secure the new CDI box in place.
- Reconnect the Battery: Once the CDI box is installed, reconnect the battery.
- Test the Ignition System: Start the motorcycle and check if the engine runs smoothly. If there are any issues, use the multimeter to troubleshoot the electrical connections.
Related Products

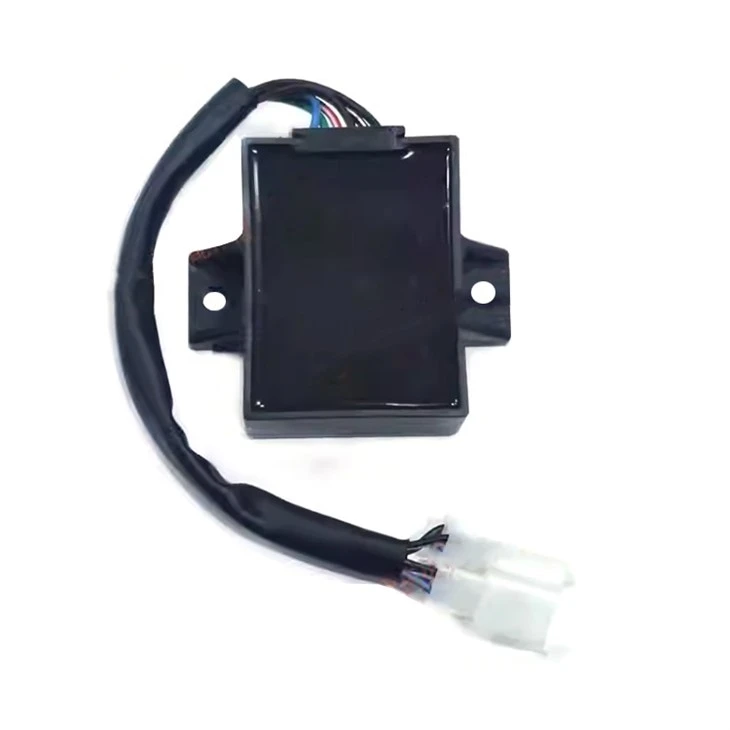

In addition to the YMH 8 Pin CDI Box, we also offer other high-quality motorcycle ignition parts. For example, the 6 Cables JH007 CDI Unit is a popular choice for many motorcycle models. It provides reliable ignition performance and is easy to install. Another great option is the Honda 125 Cdi Igniter, which is specifically designed for Honda 125 motorcycles.
Contact Us for Procurement
If you are interested in purchasing the YMH 8 Pin CDI Box or any of our other motorcycle ignition products, we encourage you to contact us for more information. We offer competitive prices, high-quality products, and excellent customer service. Whether you are a motorcycle enthusiast, a mechanic, or a business owner, we can provide you with the right ignition solutions for your needs. Feel free to reach out and start a procurement discussion with us.
